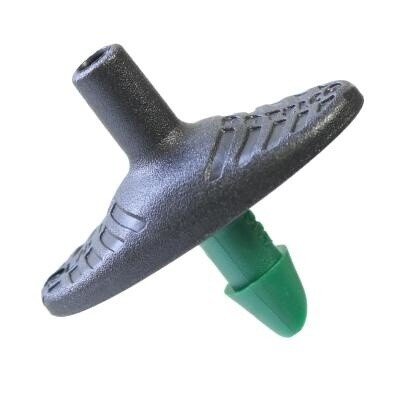

Antelco 1 GPH PC Pinch Drip (30715)

Antelco 1 GPH PC Pinch Drip (30715)

$0.34
Pinch Drip is a PC (Pressure Compensating) dripper designed with a turbulent flow path and factory sealed to maintain consistent pre-set discharge rates. Ergonomically designed for ease of installation using a finger/thumb grip. Antelco registered design Operating pressure range: 15 - 45 PSI Three color coded flow rates: .5 GPH; 1 GPH & 2 GPH Inlet barb has a built-in filter Turbulent Flow path and self-flushing action with insect baffle to minimize blockages Outlet barb is suitable for attaching 0.16" micro tubing UV stabilized materials for long life
In stock: 437 available
Save this product for later
Share this product with your friends
Pin it
Antelco 1 GPH PC Pinch Drip (30715)
Product Details
Brand: Antelco

Pinch Drip™ Pressure Compensating

Our highest performance Pressure Compensating (PC) dripper with a sealed turbulent flow path and diaphragm to maintain uniform flow rates over a wide range of operating pressures. Low profile ergonomic design to minimize dislodgement from supply tubing and for ease of installation.

Features

  • Low manufacturing coefficient of variation (Cv) to provide high performance (conforms to ISO 9261).
  • Three color coded flow rates: 1/2 gph, 1 gph & 2 gph.
  • Self-flushing (cleaning) action at low pressures.
  • Insect baffle to minimize blockages.
  • Inlet barb has built-in filter.
  • UV stabilized materials for long life

Applications

Vineyards, Orchards, Row Crops and Landscape
